How to Drill and Trim Carbon Fiber Body Panels

Clean drilling and trimming starts before the tool touches the carbon. Confirm where material can be removed, support the panel close to the work, and use sharp tooling suited to its construction. Tape can protect a finish and carry your marks. It cannot replace backing, secure workholding or a correctly located hole.

This guide covers the preparation and sequence for approved fitting work on carbon body and interior panels. It does not make every flange, mounting tab or concealed edge safe to modify. A part's reinforcement, bonded inserts and core can be difficult to identify from the finished face.

Dry-fit the part with its neighboring panels and intended clips or brackets. If a hole will not line up, first check that the part is correct, the brackets are seated and nothing is trapped behind it. Loosen adjustable fixings and assess the complete assembly. Do not enlarge a hole simply because the bolt cannot reach it.

Mark the interference and photograph it from both sides. A mounting tab touching a bracket is a different problem from a panel edge touching trim. Ask for a defined removal area when the instructions do not show one. “Trim to fit” should become a specific location and limit before work begins.

A useful preparation note contains the part reference, vehicle details, proposed hole or cut, and a photograph showing the nearby mounts. Keep the original outline visible while working. That makes small changes easier to judge and helps prevent the cut from wandering into an important flange.

Remove the panel from the vehicle where the procedure allows. Protect its finish on a clean, padded support and secure it without distorting the shape. A loose part is difficult to control when a drill breaks through or a cutting tool catches an edge. Keep hands outside the tool's path and follow its workholding instructions.

Carbon machining produces fine dust and sharp fragments. Use extraction suited to conductive composite dust, suitable eye protection and correctly selected respiratory protection. Protect skin from fragments and keep dust away from electrical equipment. A household vacuum or compressed-air blow-off is not a substitute for an appropriate collection setup. Monash University's carbon-composite guidance explains the dust and electrical-contamination risks.

Do not improvise wet cutting around an ordinary powered tool. Wet processing needs equipment and controls designed for it. If you cannot secure the panel or control the debris safely, have a composite workshop carry out the operation.

Carbon is abrasive, so a bit that looks acceptable may already be cutting poorly. Avoid compensating for worn tooling with more force. Drill diameter, bit geometry, laminate thickness and equipment all affect suitable speed and feed. There is no one setting for every carbon panel.

Easy Composites demonstrates several cutting and finishing tools, including hand tools. Treat those demonstrations as material-working examples, then apply the instructions for your particular part.

1. Locate the hole. Confirm its center, finished diameter and relationship to edges, inserts and existing holes. Check what is behind the panel. Do not hammer a center punch into the laminate.
2. Protect the visible face. Use compatible removable tape where helpful. Test tape on the finish first if its compatibility is uncertain.
3. Support the exit. On a suitable flat laminate, place sacrificial backing directly against the underside at the hole. Secure the assembly without crushing the panel.
4. Align the tool. Keep the intended drilling direction stable. Use a pilot or staged process only where the tooling and part instructions call for one.
5. Make the cut without forcing it. Maintain controlled feed, especially near breakthrough. Stop if the bit grabs, the panel lifts or the cut starts tearing.
6. Inspect both faces. Remove debris using the planned dust controls. Check the entry, exit and bore before fitting hardware.

DragonPlate's sheet guidance describes sacrificial backing to support drill breakthrough. The support should follow the panel's shape. Forcing a curved part flat to match this diagram introduces another source of stress.

A clean circular hole is only one requirement. It must also be in a suitable mounting area and accept the specified hardware. Do not add a countersink, cut a thread directly into thin laminate or change the head style as a cosmetic afterthought.

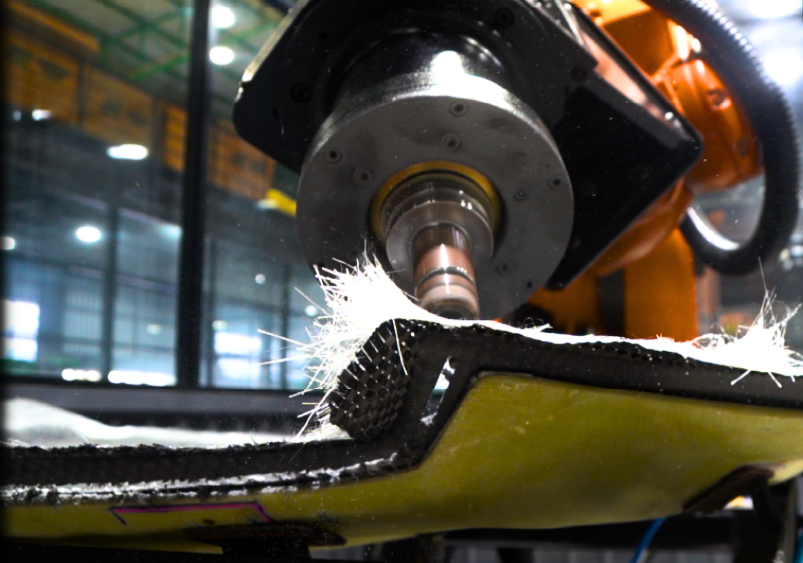

Use an approved removal boundary and approach it gradually. Keep the offcut supported so it does not tear the last connected fibers away. Leave enough material for the specified finishing process instead of trying to achieve the final edge in a single aggressive pass.

After each small adjustment, clean the area and refit the part. Check the original interference as well as adjacent clearances. If removing material has not changed the problem as expected, stop and reconsider the diagnosis. A hidden bracket or incorrect clip can make repeated trimming seem necessary when it is not.

A return edge can add stiffness even when it is out of sight. A mounting flange can also carry more load than its size suggests. Do not thin either one to gain clearance without confirming what that change does to the part.

Remove sharp loose fibers using the specified finishing method. Check for chipped finish, lifted layers, splitting or exposed core. Edge sealing depends on the construction and environment. A solid laminate, a cored panel and a bonded insert area may need different treatment.

Sealing is a finishing operation, not a repair for broken reinforcement. If the cut has damaged a mounting area, coating over it does not restore its strength. See clear-coat cracks versus laminate damage for what to document before repair.

• Chipping at the exit: stop and check backing contact, tool condition and feed. Assess the damage before using the hole.
• A wandering hole: check location and workholding. Do not automatically enlarge it to regain alignment.
• Discoloration or a tearing edge: stop, let the area cool and inspect the tooling and material.
• A cut approaching a mount or core: pause for the correct construction-specific instruction.

For cabin parts, the MK4 Supra carbon interior guide covers clips, controls and wiring clearance before any adjustment is made.

Can I use a normal electric drill?

Some approved operations can use conventional equipment with suitable tooling. The material, hole position, support and dust controls matter as much as the drill itself.

Will masking tape prevent splintering?

It can help with marking and surface protection. It cannot support the underside as a backing fixture does or guarantee a damage-free cut.

Can I slot a hole to make a panel fit?

Only where the design permits that adjustment. Slotting removes bearing material and changes how the fixing supports the panel.

For mounting after machining, read the splitter, lip and side-skirt installation guide. If a cut location is unclear, send ETi photographs before removing material.
