Cracked Carbon Fiber or Cracked Clear Coat? What to Check

A line in a carbon panel's finish does not, by itself, tell you how deep the damage goes. The mark may be in a surface coating, within the reinforced laminate, or associated with a damaged mount underneath. Before polishing, sanding or adding resin, record the condition and determine whether the part can safely remain in service.

The most useful first step is to preserve the evidence. Note when the mark appeared, whether the panel was struck or overtightened, and whether its fit or movement has changed. A freshly photographed crack is easier to assess than one that has been sanded smooth or covered by a larger washer.

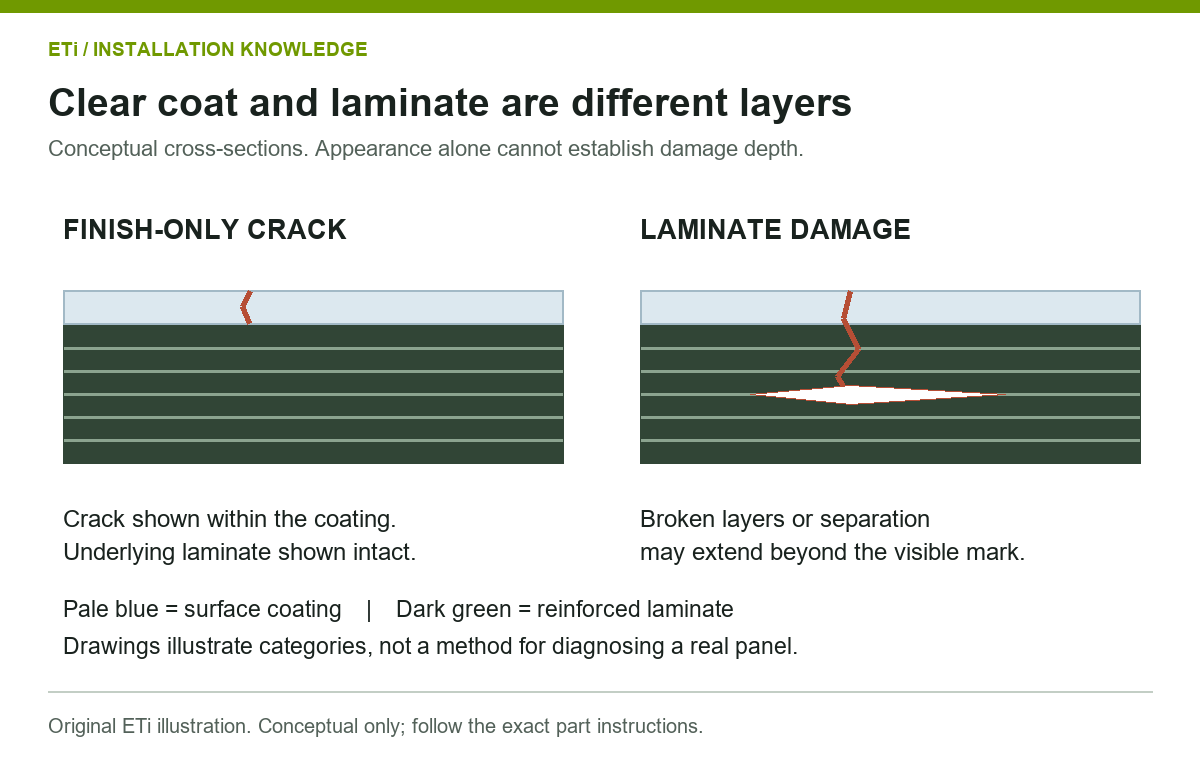

Many exposed-carbon panels have a protective surface finish over a reinforced composite. The laminate itself contains fibers held in a resin matrix; some parts also contain a core, bonded reinforcement or attached inserts. A crack in one layer is not automatically limited to that layer.

A finish-only problem concerns the coating. Laminate damage can involve broken fibers, cracks in the resin, separation between layers or separation at a bonded interface. These conditions need different assessments and repair methods.

The limits of visual inspection are well established in composite engineering. FAA composite-structure guidance explains that visible indications can provide limited information about hidden damage and may need further inspection. That general principle matters here; aircraft criteria are not ETi automotive repair limits.

The same small-looking mark has different implications depending on its location. A scratch on an exposed cosmetic surface deserves attention, but a crack beside a hinge, latch, bonded insert or loaded mounting hole also raises an attachment question.

These are observations, not diagnoses. A scratch that catches a fingernail does not establish laminate damage, and one that feels smooth does not prove the structure is intact. Avoid turning a simple surface check into a pass-or-fail test.

Stop assembly or use if a mount cracks during tightening, an insert turns, the panel changes shape around a fixing, or attachment security is uncertain. A hood with questionable retention and a splitter with a damaged load-bearing mount need assessment before the vehicle is driven.

After an impact, consider the whole area. A scrape may also have loaded brackets, bumper tabs or bonded supports. A panel that has moved can rub on a tire or adjacent component even if the visible finish damage seems minor.

Do not test a suspect part by driving faster, standing on it or bending it by hand. If the vehicle cannot be used with the affected part safely secured or correctly removed, arrange appropriate transport while the problem is assessed.

Use good diffuse light, then add a second angle with light across the surface to show the mark. Keep photographs sharp and include a scale beside the area without pressing against it. Take both an overview and a close-up so the location remains clear.

1. Show the whole part on the vehicle. Include enough surrounding bodywork to identify the area.
2. Show the mark close up. Take more than one angle and avoid heavy reflections hiding its edges.
3. Show the underside if safely accessible. Include the corresponding area and nearby reinforcement.
4. Show the mounting arrangement. Photograph the fastener head, support and bracket without disturbing evidence unnecessarily.
5. Describe the event. Include impacts, scraping, recent fitting work, unusual noise or a change in panel movement.

Send the original-resolution files where possible. A screenshot of a compressed social post often loses the detail needed to distinguish a reflection from a real surface feature. Include the order or part reference, vehicle details and installation history with the images.

The assessment starts with the part's function and construction. The reviewer may need the panel off the car to inspect hidden faces or mounts. Depending on the damage and its importance, appropriate nondestructive inspection or a more detailed repair evaluation may be required.

A casual tap test is not a reliable owner certification method. Sound can vary with thickness, core, curvature and support even in a sound part. Interpreting it requires a suitable procedure and knowledge of what the construction should sound like.

Ask for a clear outcome: whether the issue is confirmed as finish-only, whether repair is appropriate, what caused it and what must change before refitting. A repair that improves appearance while leaving an unsupported mount or misalignment in place can fail again.

If a qualified assessment confirms that only the surface finish is affected, the repair can be planned around that coating system. The refinisher needs to know what lies beneath it and how much material can safely be removed. Deep sanding can turn a finish job into damage to the reinforcement.

Structural repair is a different task. It may require a designed repair area, compatible materials, controlled preparation and cure, and verification before service. Applying resin to the visible crack or bonding a patch over it does not automatically restore the original load capacity.

Likewise, a larger washer cannot restore a damaged mounting hole. It may hide the mark while leaving broken material under load. For the mounting principles, see carbon aero mounting and support.

Common questions to resolve include whether the panel was forced into alignment, a fixing bottomed out, a support was missing, or the assembly experienced an impact. Where heat is involved, review the source and shielding rather than simply refinishing the surface. The carbon heat-protection guide explains that process.

Keep the assessment and repair record with photographs. Follow the specified inspection schedule after refitting, including what to check if the mark returns or grows. A change from the documented condition is useful information to report promptly.

Can a photo prove a carbon part is safe?

No. It can help identify concerns and guide the next inspection, but hidden damage and attachment integrity may need an in-person assessment.

Should I polish the line to see whether it disappears?

Photograph and assess it first. Polishing can change the evidence and cannot establish the condition of the laminate underneath.

Can clear coat crack while the carbon stays intact?

Yes, finish-only damage is possible. It still needs to be distinguished from damage involving the laminate, especially near mounts or after an impact.

Send ETi the part reference, photographs and event history before modifying the area. Once a finish-only issue is confirmed, the carbon care guide can help you protect the repaired surface.
