MK4 Supra Carbon Interior Installation: Dash, Bezels and Trim

A well-fitted MK4 Supra carbon interior starts with the correct part, intact mounting hardware and a careful dry-fit. The visible carbon should follow the cabin's shape without being pulled into place by screws, clips or adhesive. Switches, vents, storage lids and wiring still need to work as they did before the trim was changed.

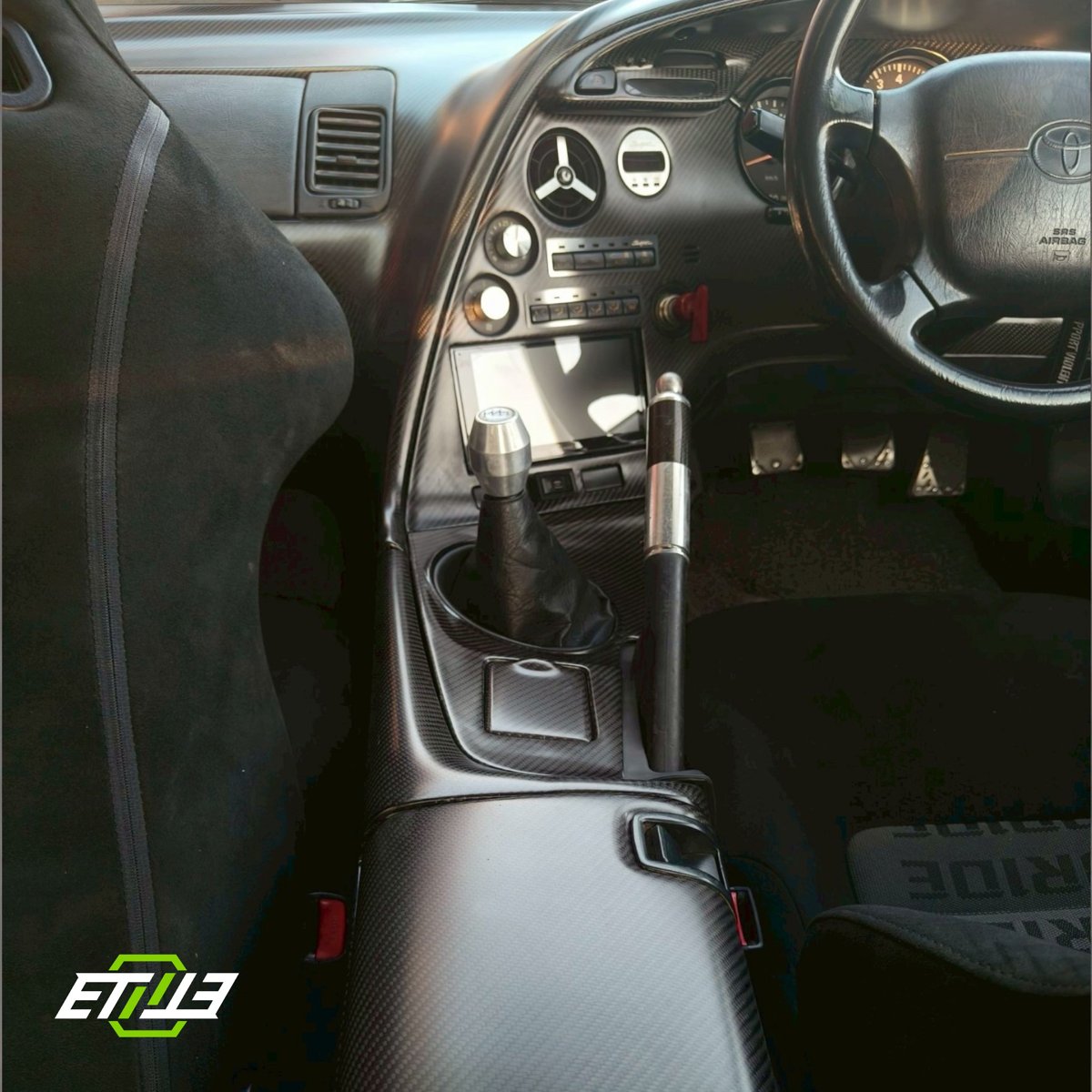

On an A80, distinguish a replacement panel from an overlay before buying or removing anything. A complete dashboard, an instrument bezel and a console cover are different jobs. Confirm steering side, production details, existing modifications and the exact opening layout with ETi. A right-hand-drive installation photograph does not prove left-hand-drive compatibility.

Lay the new parts out on a clean, padded surface. Compare their front and rear faces with the original components and the fitting instructions. Identify reused clips, screws, brackets, vents, switch carriers and any adhesive attachment. Keep each part's hardware together so similar-looking screws are not exchanged accidentally.

Before dismantling the cabin, record anything that already needs attention. Test the windows, door locks, interior lighting, ventilation controls, audio system and instrument illumination as applicable. Photograph existing panel gaps and any broken clips. This gives you a clear starting point for the final check.

The original Toyota workshop information is the starting point for dismantling the car. The 1997 Supra body manual, RM502U, separates the console, cluster finishes, ducts, brackets and instrument panel into a defined removal sequence. Its instrument-panel section also includes precautions around airbag components and wiring. It is a US-model reference, not a universal map for every A80.

A full dashboard replacement involves much more than unclipping its outer edges. Use a technician familiar with the exact vehicle and its SRS system. Follow the correct battery-isolation procedure, waiting period and handling instructions in the applicable service manual. Do not probe airbag connectors, modify airbag covers or improvise a way to retain an airbag behind an unapproved carbon panel.

For smaller trim work, use suitable plastic removal tools and release each fixing in the prescribed sequence. Support the trim close to the clip rather than levering across a wide unsupported span. If it will not release, find the remaining attachment. More force is rarely a good diagnostic tool.

Label connectors as they are disconnected and photograph their routes. Store fragile original pieces safely. They remain useful references for fit, bracket position and component transfer even after the carbon parts are installed.

Inspect the original clips and retainers before transferring them. A damaged retainer can hold poorly, sit at an angle or create a rattle. Replace it with the correct component instead of relying on adhesive or foam to keep it in place.

Transfer switches, vents and carriers only as the replacement part's design permits. Check that the clips engage at the intended depth. A switch that fits through an opening may still lack proper retention, while an overtightened bracket can distort the surrounding laminate.

Measure screw length and note any shoulder, washer or spacer. A screw designed for a thicker plastic boss may bottom out or protrude through a thinner mounting arrangement. Do not assume that every original fixing can be reused unchanged.

Position the parts before adhesive or final tightening. Fit the surrounding pieces that control their location, then check the overall alignment. A bezel can appear correct on the bench but interfere with a vent, cluster, steering-column cover or aftermarket display once installed.

Confirm that the rear of the panel clears connector bodies and wiring. A connector pressing against the underside can hold one corner proud. Move a harness only where its correct routing allows; do not pinch it behind the trim or leave it rubbing on a sharp edge.

Test the switches and movable controls for physical clearance while the system is safely isolated. The final electrical checks come after reassembly using the service procedure. Do not energize an incomplete SRS installation just to see whether the warning light goes out.

If a hand-finished mounting feature needs adjustment, identify the exact interference before cutting. A concealed edge may still support a clip or stiffen the part. Follow the carbon drilling and trimming guide for approved machining, dust controls and edge inspection.

Check the gear-selector opening, handbrake movement, storage lid and neighboring console sections. An aftermarket shifter, boot or audio installation can change the available space. Test the actual components fitted to the car rather than relying on an otherwise similar build photograph.

On a hinged cover, verify the opening range and latch engagement before final fastening. A lid that shuts only when pressed hard may be misaligned. Adding foam to make that force feel softer leaves the underlying problem in place.

For an adhesive-mounted overlay, confirm the surface preparation and adhesive specified for that finish. Follow its application temperature, pressure and time before service. Do not assume that every tape reaches its required strength overnight, or that a stronger adhesive is suitable for a fragile original surface.

Follow the A80 door-trim procedure for your vehicle's handle, switch and fastening arrangement. Keep track of the original moisture barrier and drainage provisions. A carbon door card does not remove the need to control water entering the door cavity.

During the dry-fit, check the window's path, lock and release mechanisms, speaker clearance and wiring. Confirm that the upper edge seats correctly and that clips meet their intended locations. Do not pull a bowed card flat with its screws.

Sill pieces need a door-closure check before final attachment. Watch the seals and adjoining trim for contact. The part should not become a raised edge that catches footwear or places pressure on the weatherstrip.

Rattles can come from a loose fixing, a worn clip, hard contact between parts or wiring touching the back of a panel. Identify the source before adding material. When the design allows it, thin compatible foam or an isolation pad can cushion a designated contact point.

Do not fill a large gap with thick foam or cover every opening with damping material. Added material can obstruct ducts, change clip engagement, trap wiring or interfere with service access. A damping sheet and a soft contact pad also do different jobs: one controls panel vibration, while the other cushions an interface.

• Confirm each fixing and clip is seated without visible distortion.
• Verify doors, windows, locks, console lids and controls operate freely.
• Check that wiring and connectors are secured away from moving or sharp edges.
• Verify ventilation outlets, demisting paths and instrument visibility.
• Complete the prescribed electrical and SRS checks with the appropriate technician.
• Keep the fitting instructions and photographs for later servicing.

Will every MK4 Supra carbon bezel fit both steering sides?

No assumption should be made from the model name alone. Confirm the exact part and layout before ordering.

Do carbon trim parts always need cutting?

No. Dry-fit and diagnose first. Adjustment depends on the particular part, vehicle and modification history.

Can I use more foam to stop a stubborn rattle?

Find the cause first. Foam cannot repair a broken clip, secure a loose bracket or make an incompatible panel fit.

For care after installation, use the ETi carbon care guide. Send ETi your vehicle details and both-side photographs if a mounting point or opening does not match.
