Product Description

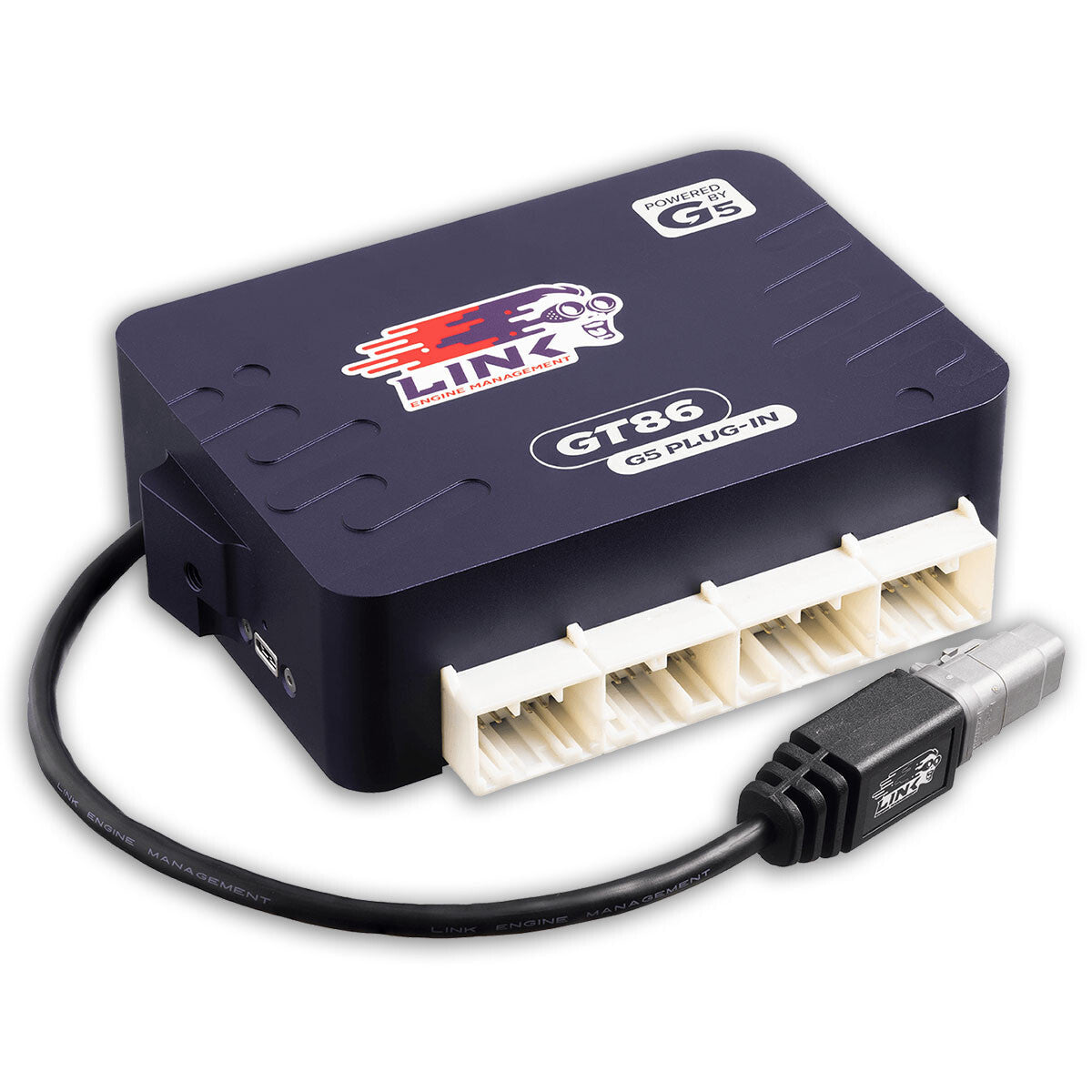

The LINK ECU GT86 G5 Plug-in is a standalone with no adapter harness needed. Sample map included for a head start on calibrating. The GT86 G5 Plug-in runs the same powerful microcontroller and firmware as the G5 Voodoo Pro.

Designed for the 2.0 L 4U-GSE/FA20 H4 Engine. Support for both Manual and Automatic Transmissions.

Models Supported:

Toyota 86, ZN6, 2012 – 2021
Toyota GT86, ZN6, 2012-2021
Subaru BRZ, ZC6, 2012-2020
Scion FR-S 2013-2016

In the box:

G5-GT86 Plugin Computer
USB-C Connection Cable
Locking USB-C extension cable for easy tuning access
2 x M6 screws for ECU mounting in OEM bracket
DTM4 CAN Connection Cable (Pre-Installed in Enclosure)
Link stickers

Features:

  • Control both Direct and Port Injection
  • Full OEM CAN Bus integration
  • Control both Manual and Automatic Transmissions
  • Billet CNC Aluminium Enclosure
  • Mounts in OEM Location
  • Includes a locking USB-C extension cable for easy tuning access
  • Comes with a built-in powered DTM4 CAN cable
  • Full factory E-throttle (DBW) control
  • Full VVT-i control
  • 512MB of Onboard Data Logging, up to 250 channels and 100k samples per second
  • Runs on Link’s renowned PC Link, giving you the confidence to get started right away
  • Backed by Link’s Limited Lifetime Warranty



The following expansion connector inputs/outputs are provided:

Expansion connector 1:
1: +14V Out
2: AUX 15
3: AUX 16
4: DI 11
5: DI 10
6: DI 9
7: +5V Out
8: GND

Expansion Connector 2:
1: +14V Out
2: Not Connected
3: AN Volt 12
4: AN Volt 11*
5: AN Volt 6*
6: AN Temp 4*
7: +5V Out
8: GND

*These inputs each have a jumper to either connect them to the Expansion plug or to their normal functions on the main header.
