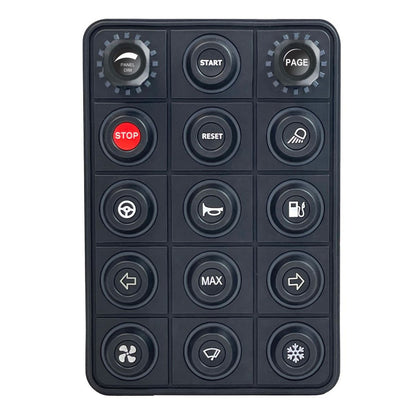

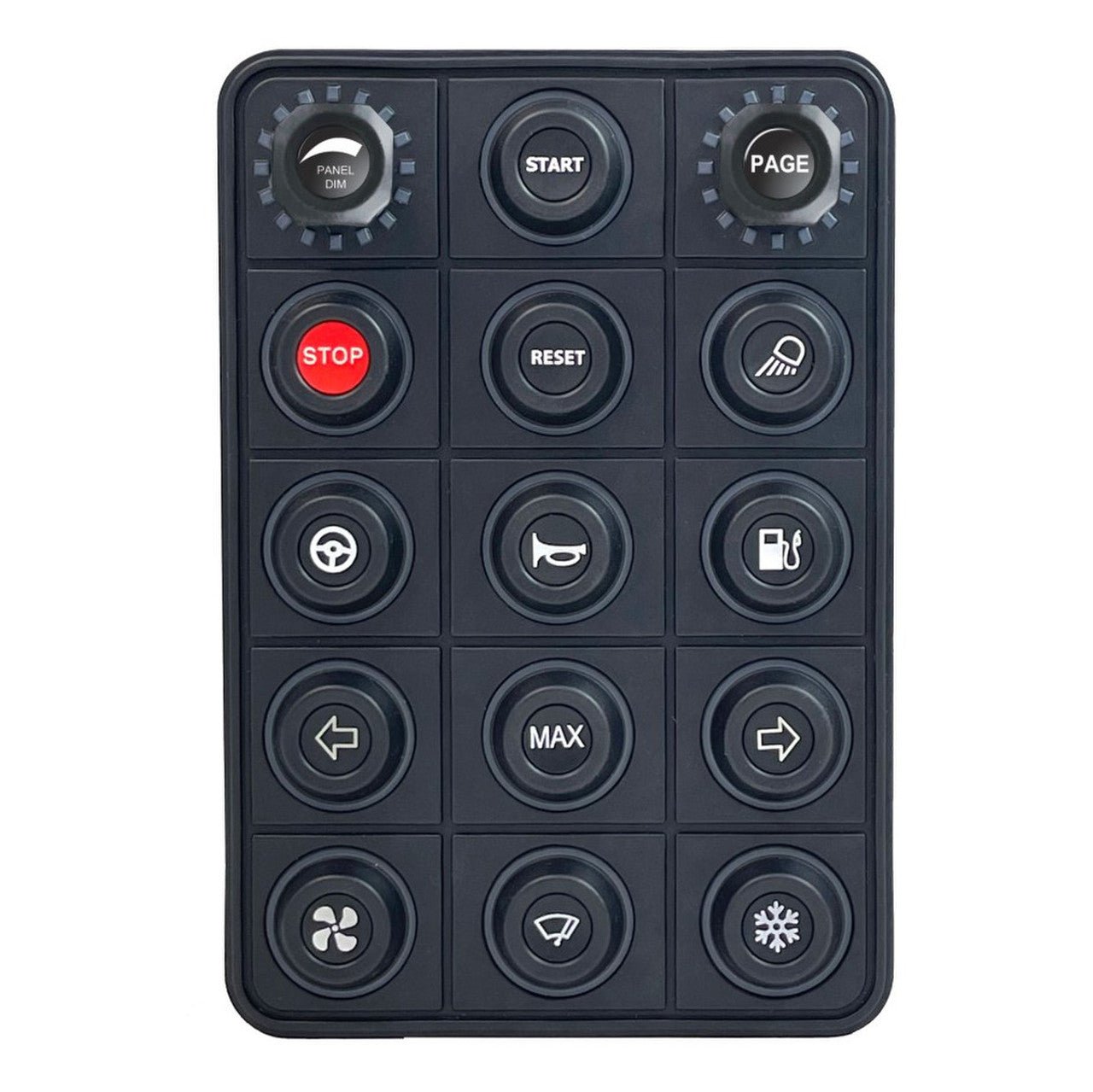

Rugged 15 button CAN Keypad with interchangeable 15mm inserts (sold separately). Two rotary encoders with 16 Blue indicator LEDs each. Four additional analog inputs allow additional sensors/switches to directly connect to the CAN Bus network through the keypad. The compact layout and inclusion of the rotary encoders and analog inputs allow for significant dash space saving while massively expanding functionality.
See features tab for more info
Box Contents:
1 x 15 Button CAN Keypad
1 x DTM4 Mating Connector Kit
1 x Molex Mating Connector Kit
1 x Link Sticker
1 x Keypad Button Insert – Link Logo
Note: Keypad ships with empty button inserts, inserts need to be selected and purchased individually. 1 x Link ECU Logo Button Insert included in box loose.
- 15 Buttons and 2 Rotary Encoders (push enabled, buttons
can function independent to rotary encoder) - 4 Analog Inputs for additional Sensors or Switches
- CAN Configurable with G4X/G5 PC Link – Change button
LED backlight colour, individual button indicator ring
colour, programmable to show change in status, flashing
option, multiple modes including momentary, latched
and toggle. - CAN Bus Communication back to Engine Management
System/PDM - 16 Blue LED Lights on Rotary Encoders while all 13
Pushbuttons Buttons have customisable RGB LED Rings - Compatible with all Link G4X and G5 ECUs
- Customizable Button Inserts – The replacement system
for individual inserts makes modifying the keypad layout
simple and economical - DTM4 Connector for CAN and Power, Molex Connector
for Analogue Inputs
Specifications
Connector - DTM4 Connector for CAN and Power (Black = Ground, Red = Power, White = CAN High, Blue = CAN Low) + Molex 39-01-3069
Switch Life - 3 million operations
Default Baud Rate - 1000kbit/s
Chemical Resistance - Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi-Purpose Cleaner, Orange Citrus Cleaner, Muriatic Acid
UV Protection - UVB 400 hours
Salt Spray Per - ASTMB117
Weight - 360grams
Dimensions - 105 x 152.5 x 16.3mm (excl mounting studs)
