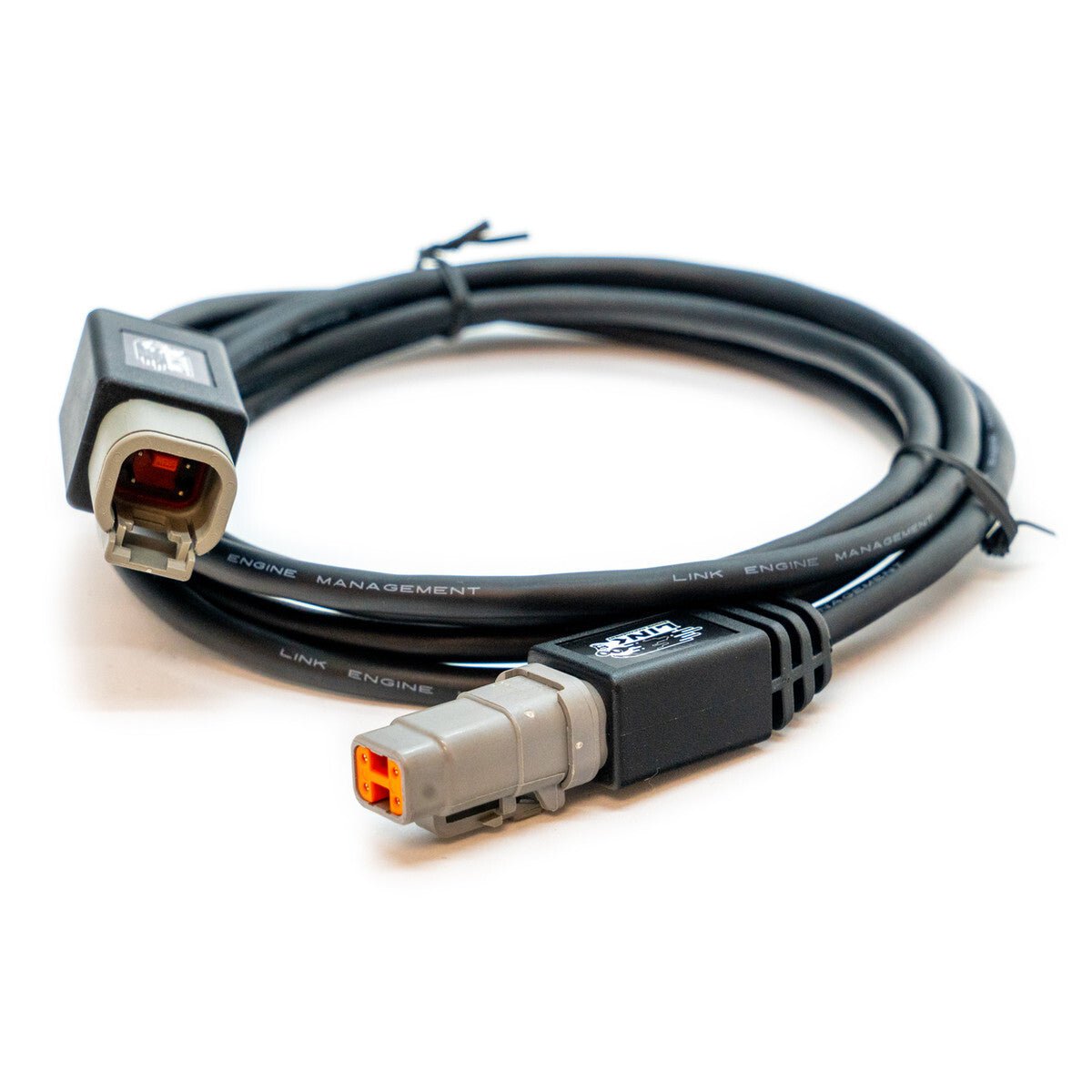

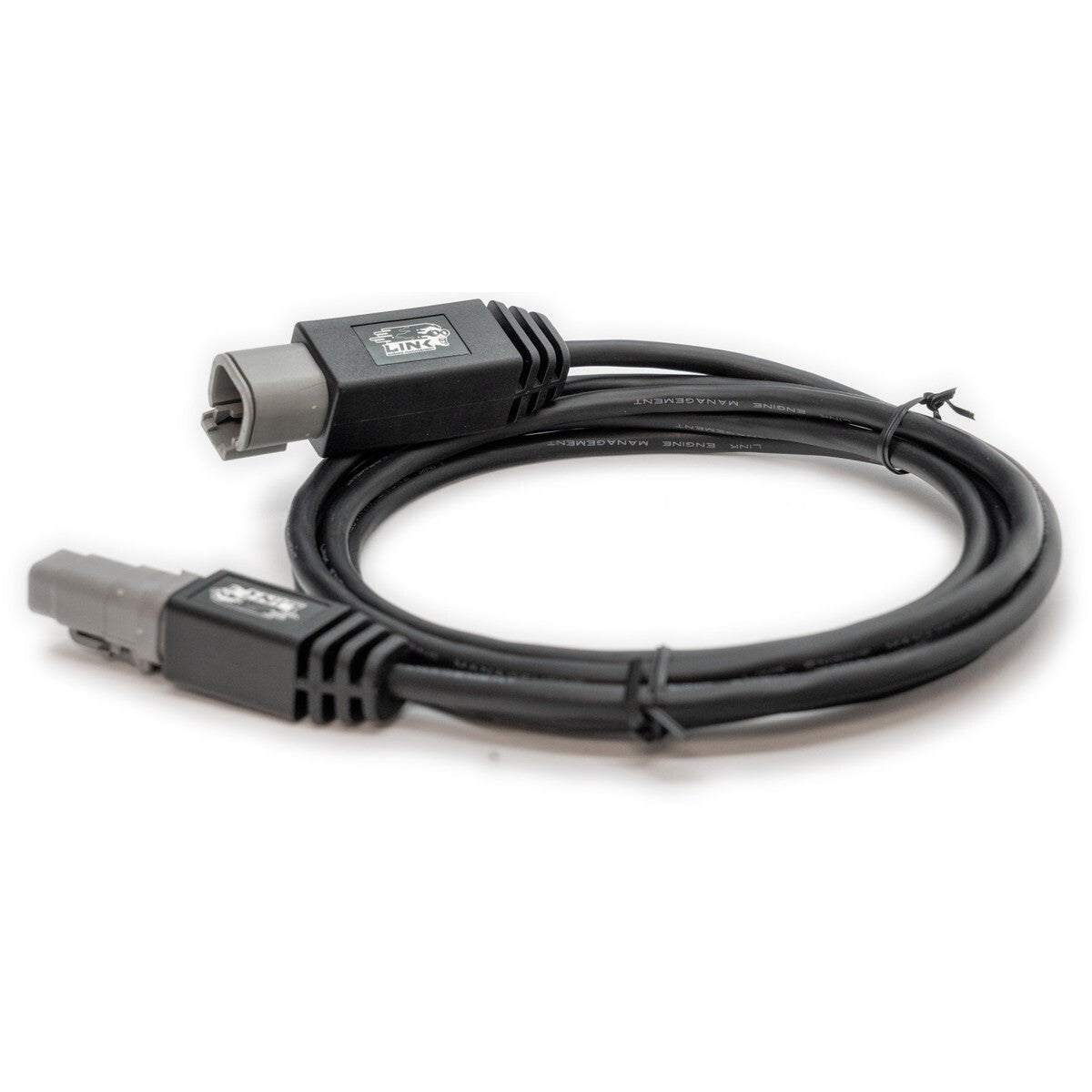

CANEXT

Product Description

Required to add CAN communication to WireIn ECU's which have CAN accessible via the 6Pin round CAN connector on the front of the ECU.

Compatible ECU's:
G5 Voodoo Pro (CAN1)
G4X/G4+ Xtreme (CAN1)
G4X/G4+ Fury (CAN1)
G4+ Force (CAN1)
G4+ Thunder (CAN1)

Specs
DTM4 Male to LTW 6Pin. 12V & GND Flying Leads. CAN Loom Length 300mm (Flying lead length 500mm)

DTM4 Pin Out
Pin 4: CAN H
Pin 3: CAN L
Pin 2: Ground
Pin 1: 12V
