CANSS

Product Description

Required to add CAN communication to WireIn ECU's which have CAN accessible via the Header.

Compatible ECU's:

G4X/G4+ Atom (CAN1)

G4X/G4+ Monsoon (CAN1)

G4X/G4+ Storm (CAN2)

G4X/G4+ Xtreme (CAN2)

G4X/G4+ Fury (CAN2)

G4+ Force (CAN2)

G4+ Thunder (CAN2)

Specs

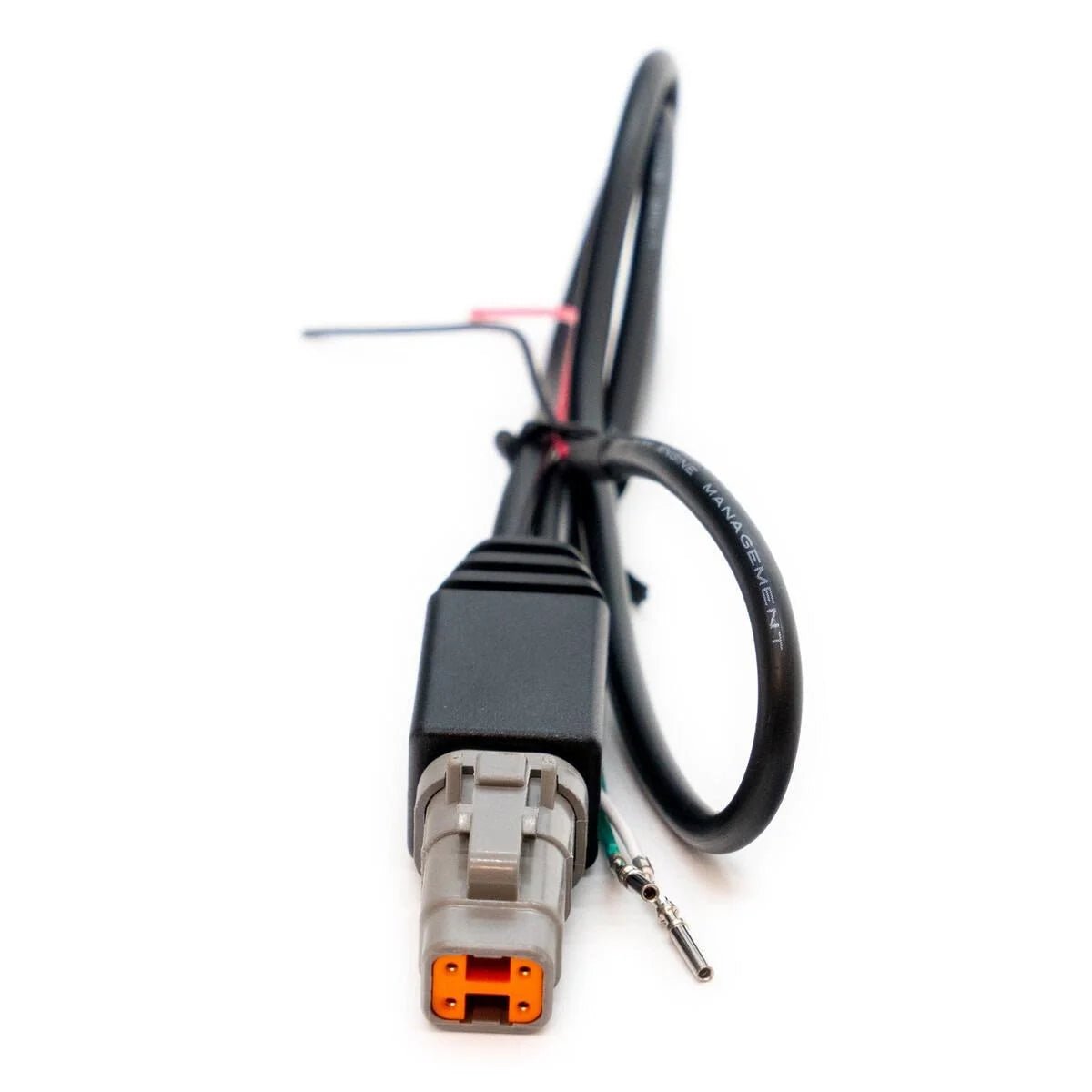

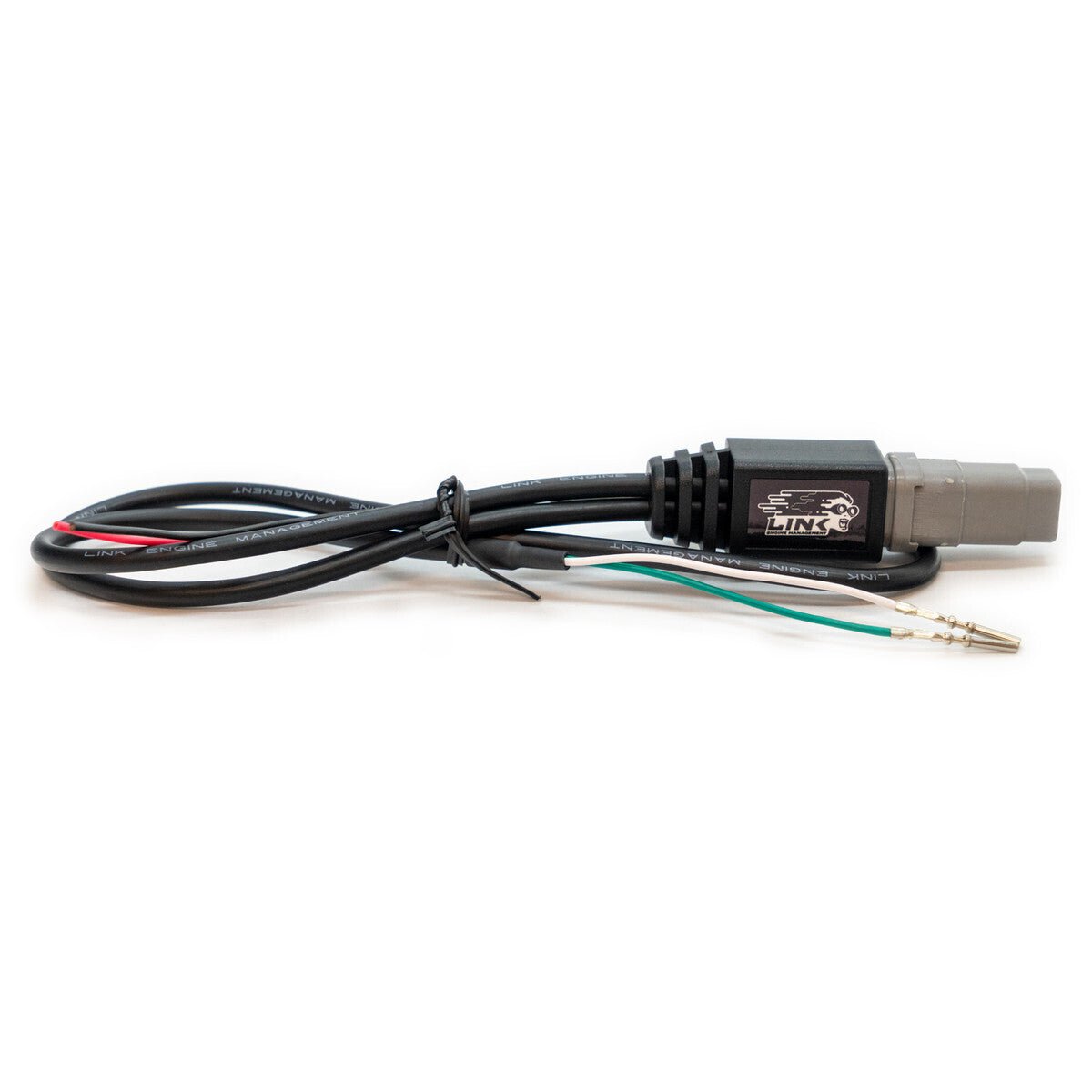

DTM4 Male to Flying leads. CAN H & L crimped with Superseal terminals. 12V & GND Flying Leads. Length: CAN Loom length 300mm (Flying leads 500mm long)

DTM4 Pin Out

Pin 4: CAN H

Pin 3: CAN L

Pin 2: Ground

Pin 1: 12V
