CANJST4

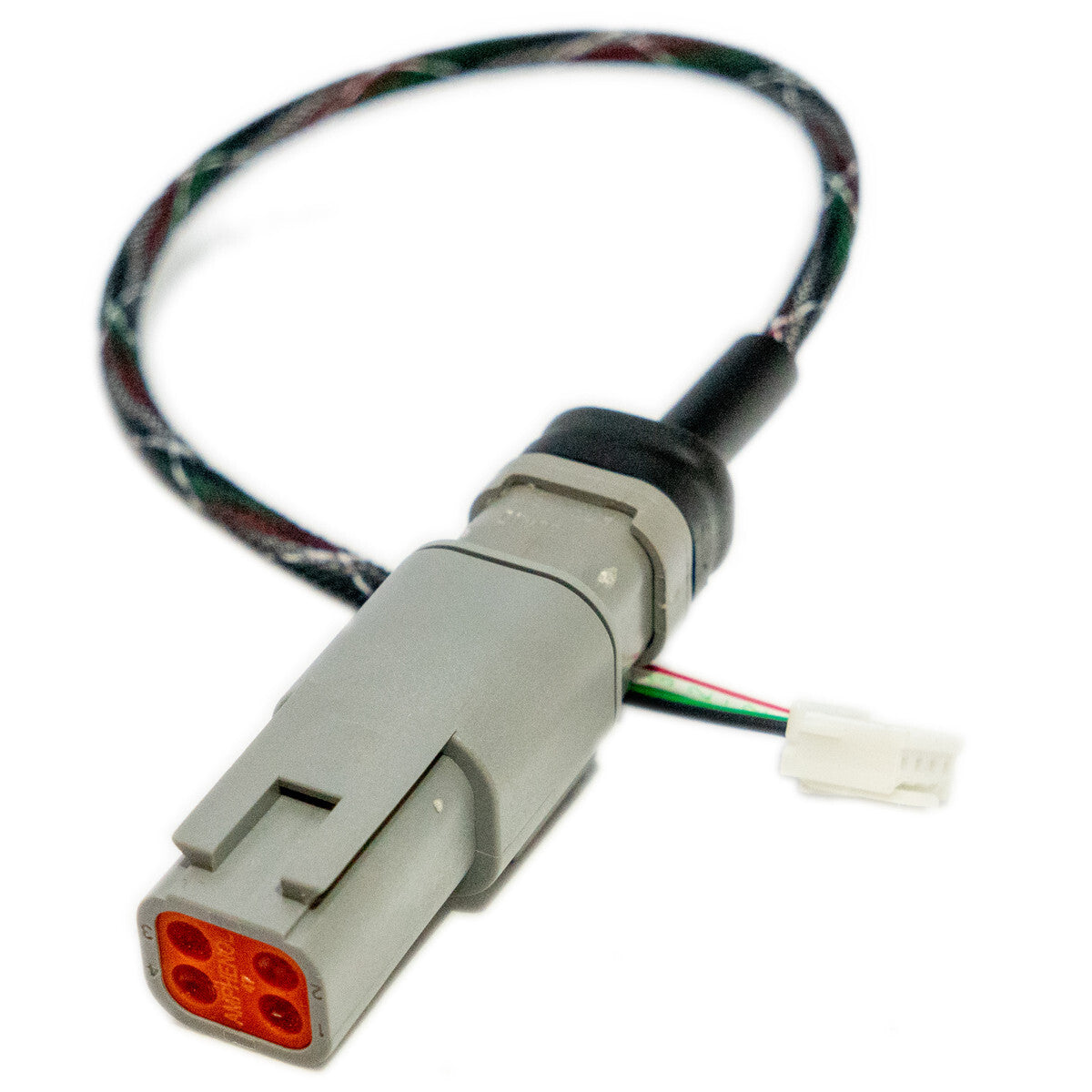

Required to add CAN communications & power to recently released G4X Plugin ECU’s which have the new 4 Pin powered CAN connector (not the older 5pin CAN connector).  Plugs directly into the socket on the ECU PCB, provides CAN and a protected 12V supply to allow easy connection of CAN accessories.  Includes the mating DTM4 connector kit.

Suitable for powering a CAN Lambda, Dash, EGT amplifier or other similar low powered CAN devices which have a total continuous current draw of <3A.

Compatible PlugIns:

233-4000 - PlugIn ECU G4X Honda S2000 AP1

Pin Out

Pin 4: CAN H
Pin 3: CAN L
Pin 2: Ground
Pin 1: 12V
