MXG STREET

ink MXG Strada 7” dash, powered by AIM.

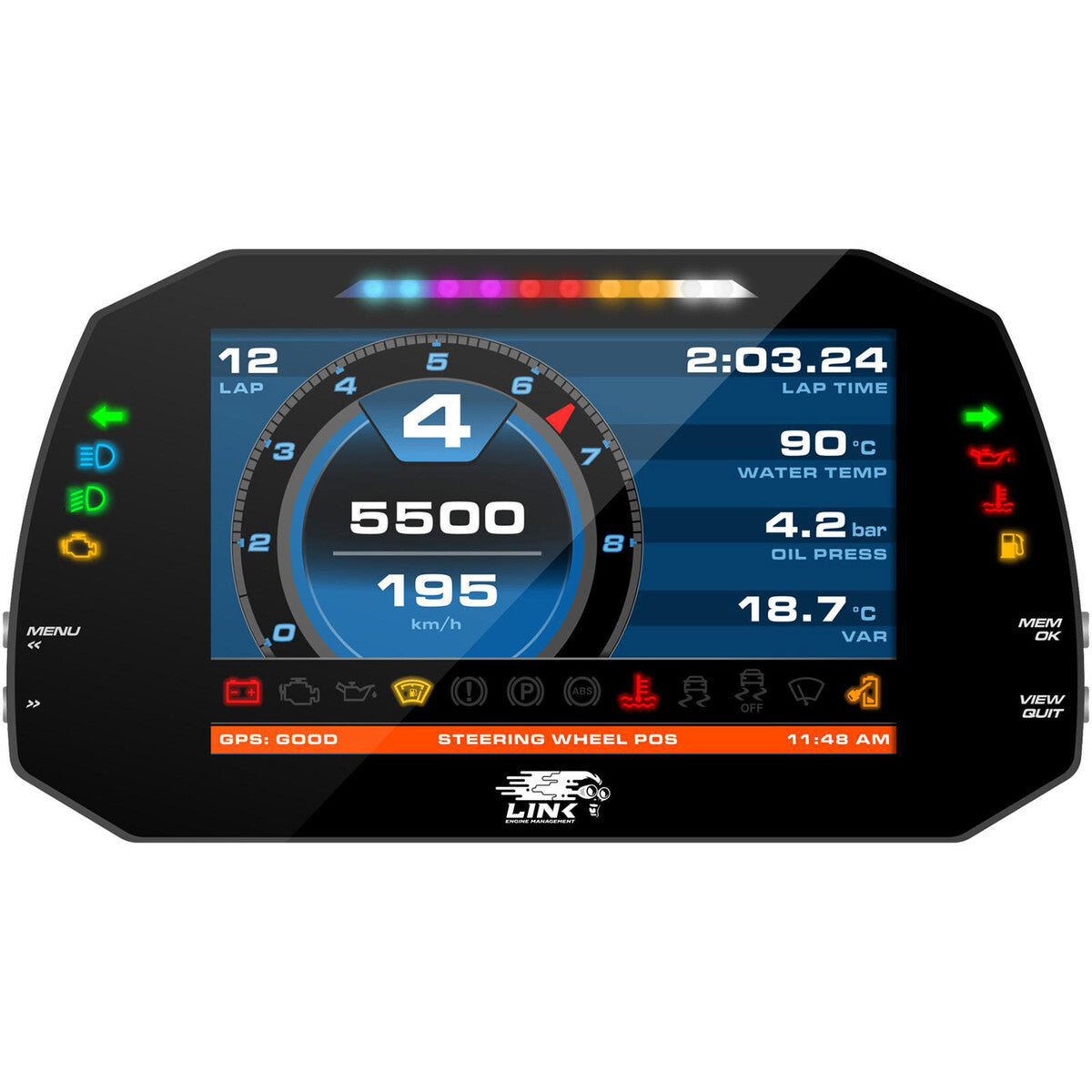

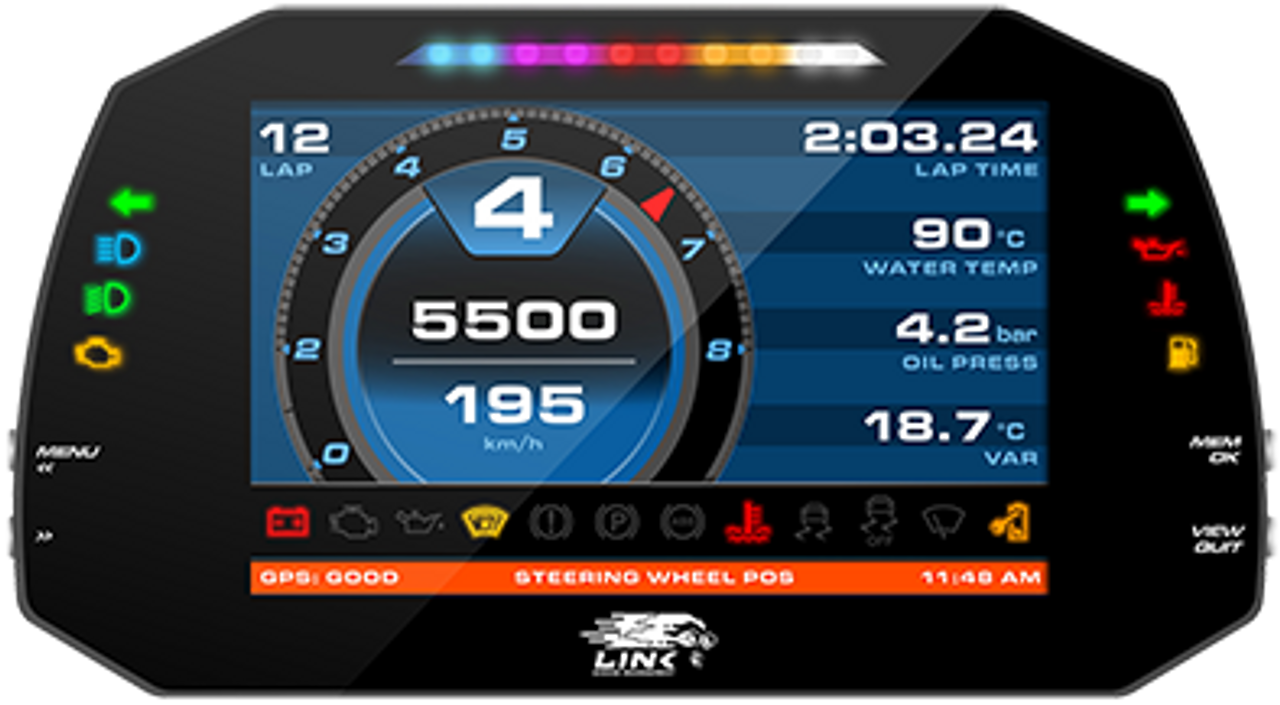

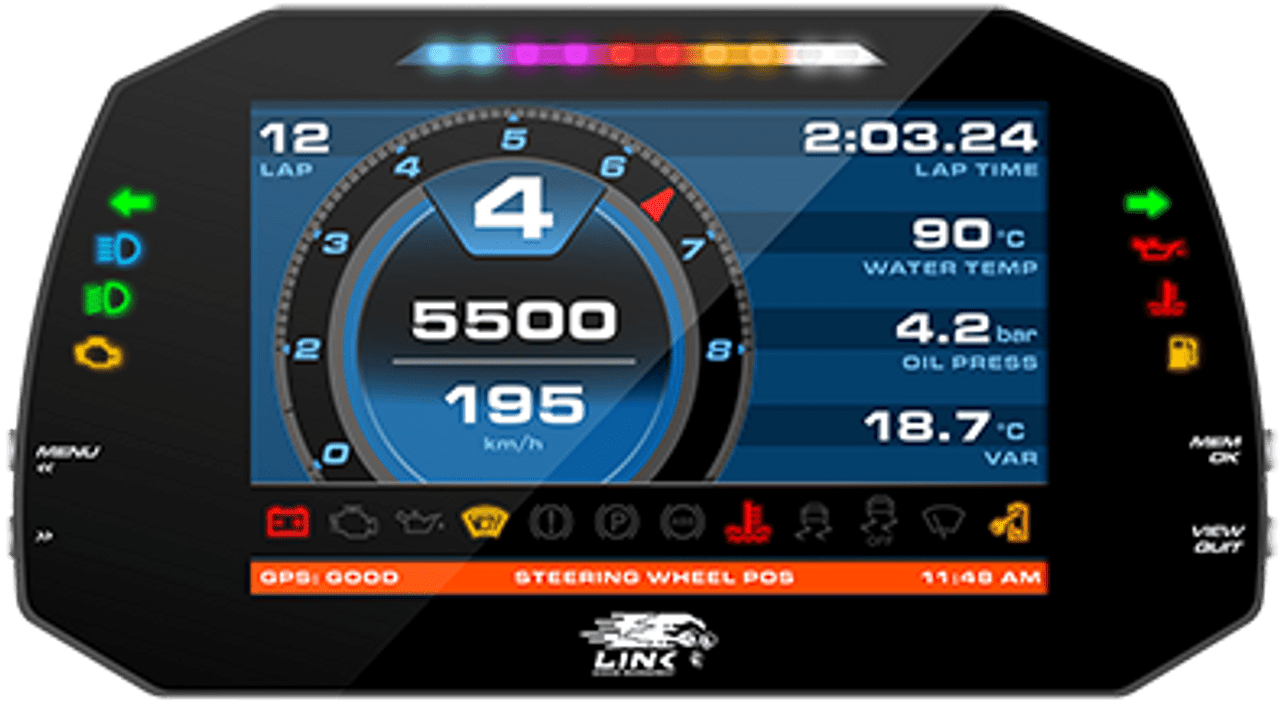

The Link MXG Strada Street Edition is a full colour, 7-inch dash display with 10 RGB shift lights and street icons down the side. The dash is pre-configured to work with all Link G4+/G4X Wire-In and Plugin ECU's.

This listing is for the 'Street edition', please see the 'Race edition' if you are looking for a dash for motorsport purposes. This dash is also available in a 5” version.

The 10 multi-coloured RGB shift lights on the MXG Strada can be customised to your liking to define the RPM threshold for each single gear.

The dash is extremely easy to use, with buttons on the side to navigate through a library of preset display styles, depending on what information you want to see and in what layout. The screen can display all real-time information reading from the ECU such as RPM, speed, water temperature, oil pressure and much more.

The Link MXG connects directly to your Link ECU via the pin kit and wiring provided in the box.

The dash can be personalised via Link ECU PC Link and Aim Technologies Race Studio 3 software.

To use with plugin ECU’s - CANPCB and CANF connectors will be required (Purchased separately).

__________________________________________________________________________________________________________________________

Included in the box:

Link MXG 1.2 Strada

USB cable

14 pin standard wiring

23 pin connector + contacts

Software installation CD

GPS module available separately

Power consumption: 400 mA

Dash Dimensions: 237×127.6×26 mm

Weight: 950 g

Waterproof: IP65
