Inside the Autoclave: How a Pre-Preg Carbon Hood Gets Made

The short answer: a dry carbon part is made by laying frozen pre-impregnated carbon fabric into a mold ply by ply, sealing it under vacuum, and curing it in an autoclave (a pressurized oven) under heat and several atmospheres of pressure. The process takes specialized equipment, cold-chain materials, and skilled hands, which is exactly why genuine dry carbon costs what it costs. Here's every step, from inside our shop in Bangkok.

Step 1: Tooling, where part quality is decided first

Every composite part is a copy of its mold. The mold's surface becomes the part's surface; the mold's accuracy becomes the part's fitment. Before any carbon is touched, the tooling is cleaned, inspected for surface defects, and treated with release agent before every single layup, no shortcuts. A flawed mold doesn't make one bad part; it makes bad parts until someone fixes it. This is why we treat tooling as the foundation of the whole operation.

Step 2: Pre-preg, carbon that lives in a freezer

Pre-preg is carbon fabric impregnated at the factory with a precisely metered resin system. The fiber-to-resin ratio is locked in before the material ever reaches a shop. The trade-off for that precision: the resin is live. Pre-preg ships cold and lives in freezer storage, because at room temperature it slowly begins curing. The material has a limited "out time" once thawed, and a limited shelf life overall.

Before layup, material comes out of the freezer, thaws sealed (condensation on cold pre-preg is contamination), and gets cut into patterns for each section of the part. Nothing is eyeballed: every ply has a shape, a place, and a fiber orientation.

Step 3: Layup, the craftsman step

Plies go into the mold in an engineered stacking sequence, with fiber orientation alternating between layers so the finished laminate is strong in every direction rather than just one. On a hood, the cosmetic surface ply is laid with the weave dead straight down the centerline, by hand, with no second chances after cure. Complex curves, character lines, and edges all want to distort the weave; not letting them is the skill you're paying for. This single step separates craftsman shops from production lines more than any machine does.

Step 4: Vacuum bagging

The laid-up mold is sealed inside a vacuum bag and the air is pulled out. Vacuum does two jobs before the autoclave does its work: it compacts the plies tight against the mold and each other, and it evacuates trapped air, the voids that would otherwise become weak points inside the laminate. Bagging a complex part without bridging or wrinkles is its own craft; a bad bag prints its mistakes into the part's surface.

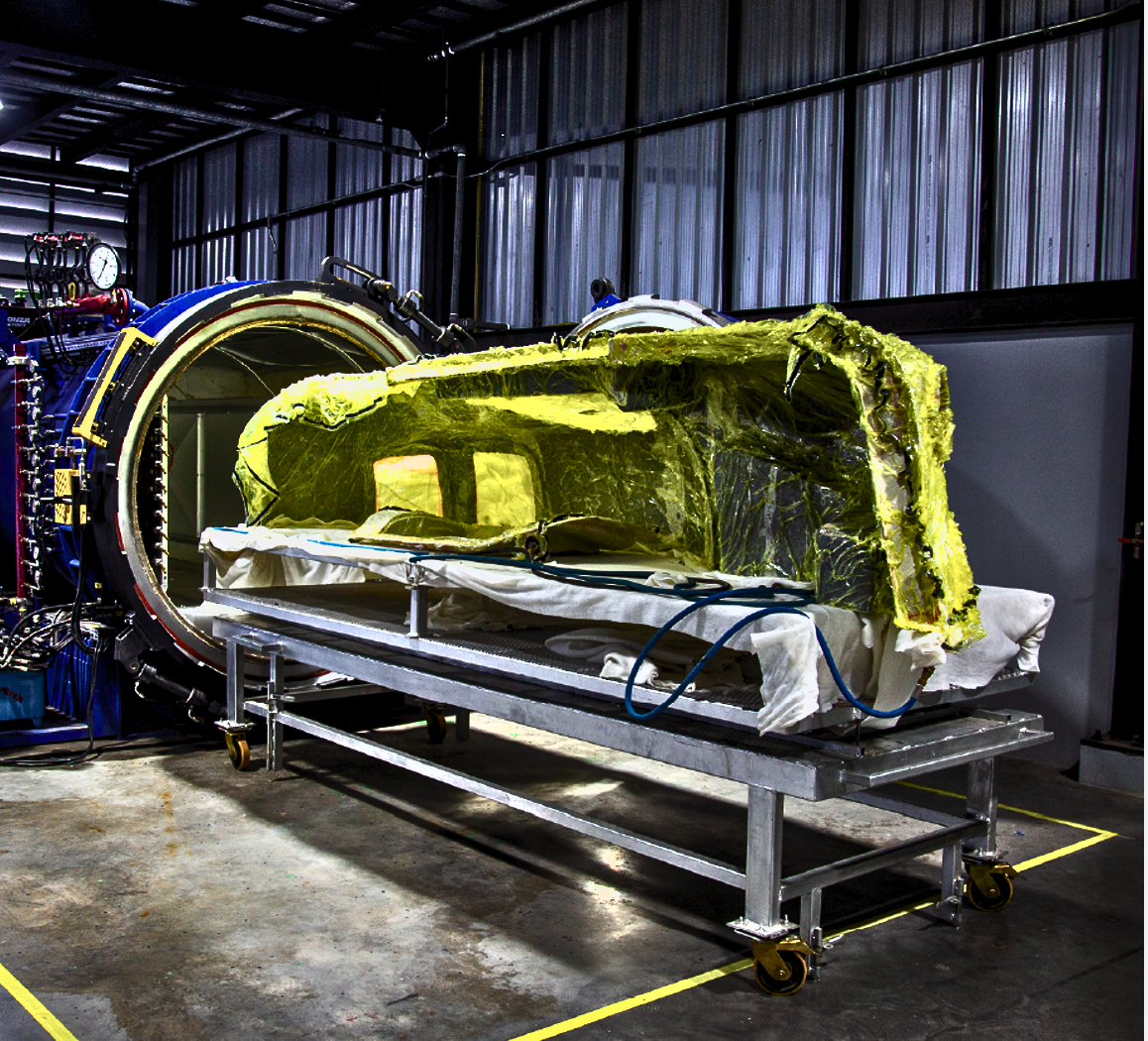

Step 5: The autoclave, heat plus pressure

The bagged mold goes into the autoclave and runs a controlled cure cycle, typically ramping to around 120-135°C under roughly 6 bar of pressure, held there for the resin system's prescribed schedule, then cooled at a controlled rate. The pressure is the part wet-lay construction can never replicate: several atmospheres squeezing the laminate while the resin cures drives fiber content up past 60%, collapses any remaining voids to near zero, and produces the dense, consistent laminate that makes dry carbon dry carbon.

An autoclave big enough for body panels is a serious industrial machine, and every cure cycle costs hours of energy and machine time whether it's curing one part or a full load. That, plus the frozen materials and the skilled hours upstream, is the honest answer to "why is dry carbon so expensive?"

Step 6: Demold, trim, finish, and the QC gate

After cure, the part comes out of the mold and gets trimmed to final shape, edges finished, and mounting points prepared. Then clear coat (matte or gloss, your call at order time), and the slow step: inspection. Surface quality, weave alignment, edge finish, dimensional checks against fitment points. Parts that don't pass don't ship; they get refinished or scrapped. A made-to-order operation lives and dies on this gate, because every part that leaves is going to a specific customer who waited for it.

What this process means when you're shopping

"Dry carbon" on a product page is supposed to mean everything above. Use that as a filter, on us or anyone:

• Ask about the process. Pre-preg? Autoclave-cured? A manufacturer doing it for real answers instantly and specifically.
• Ask about fiber content and backing. Vague answers usually mean resin-rich construction; the full breakdown is in our construction guide.
• Check the price against reality. Frozen aerospace materials and autoclave hours have a cost floor. "Dry carbon" at wet-lay prices is a label, not a process.
• Look at the underside and edges of any part you can inspect. Finished backs and clean edges are where honest construction shows.

On our products, Dry Carbon is the upgrade option listed on the product page; our standard construction is vacuum-processed carbon, a tier above the wet lay that dominates the budget market. Either way, every part is built to order, which means when you order, this exact process runs for your part.

FAQ: dry carbon manufacturing

What is an autoclave?

A pressurized oven: it cures composite parts under heat and several atmospheres of pressure simultaneously. The pressure compacts the laminate and eliminates voids while the heat cures the resin. The combination produces the lightest, densest, most consistent carbon parts. It's the same process aerospace and top-level motorsport use.

What is pre-preg carbon fiber?

Carbon fabric pre-impregnated at the factory with a precisely metered resin system, shipped and stored frozen to keep the resin from curing early. Pre-preg locks in the ideal fiber-to-resin ratio before layup. It's the foundation of dry carbon's weight and strength advantage over hand-laid construction.

What temperature does carbon fiber cure at?

Typical autoclave pre-preg systems cure around 120-135°C under roughly 6 bar of pressure, following the resin manufacturer's cycle (controlled ramp, hold, and cool-down). Wet-lay parts cure at room temperature or with mild heat, which is part of why their material properties differ.

Why is dry carbon so expensive?

Three honest cost drivers: pre-preg material is aerospace-grade, shelf-limited, and stored frozen; autoclave cycles consume hours of energy and machine time; and the layup demands skilled hands. When "dry carbon" is priced like wet lay, one of those three corners was cut, usually all of them.

Is autoclave carbon actually stronger?

Yes, measurably. Pressure-curing pushes fiber content past 60% and collapses voids to near zero, so the laminate is stiffer and more consistent at lower weight than hand-laid equivalents. It's why every serious race program specs pre-preg for structural and aero parts.

How long does it take to make a carbon hood?

For a made-to-order part: the build itself spans mold prep, layup, cure cycles, finishing, and QC across multiple weeks; it's the core of our 6-8 week lead time. Composite cure schedules are a hard floor; rushing them is how bad parts get made.

Can dry carbon be made without an autoclave?

Out-of-autoclave pre-preg systems exist, but the colloquial promise of "dry carbon" (maximum fiber content, void-free laminate) is what autoclave pressure delivers. Vacuum-processed construction is the honest middle tier; our construction guide compares all three.

Written by Nate Benoit, founder of Elite Ti. Bespoke carbon and titanium for JDM and motorsport builds. Last updated June 2026.
